Sample Code

String compare condition

Document -> Sample Code for Using APIs -> Sample code for the condition -> String compare condition

In the method loadData of SheetAPI, it allows user add string compare condition to the sheet. .

Here comes the code example


SHEET_API.loadData(SHEET_API_HD, {
    fileName: 'Condition Json File',
    sheets: [{
        name: 'First tab',
        color: 'orange',
        id: 1
    },{
        name: 'Second tab',
        id: 2
    }],
    floatings: [{
         sheet:1,
         name:"condition1",
         ftype:"cdt",
         json: "{"name":"boolstyle","rng":[{"span":[1,2,2,4,4],"type":1}],"opt":{"type":"include","base":"test","style":{"cbgc":"rgb(248,105,107)","ccolor":"rgb(150,0,0)"}},"id":"condition-2"}"
    }],
    cells: [
         {sheet: 1, row: 2, col: 2, json: {data:100}},
         {sheet: 1, row: 2, col: 3, json: {data:"test"}},
         {sheet: 1, row: 2, col: 4, json: {data:"me"}},
         {sheet: 1, row: 3, col: 2, json: {data:120}},
         {sheet: 1, row: 3, col: 3, json: {data:220}},
         {sheet: 1, row: 3, col: 4, json: {data:"test123"}},
         {sheet: 1, row: 4, col: 2, json: {data:"ok"}},
         {sheet: 1, row: 4, col: 3, json: {data:170}},
         {sheet: 1, row: 4, col: 4, json: {data:110}}
    ]
});

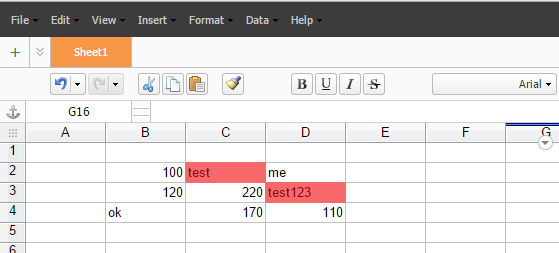

The above code will insert a range of cells from B2:D4 by adding value condition include string "test".

For condition, loadData json object includes at least 4 names: fileName, sheets, floatings and cells.

Name	Property	Example	Description
File name	fileName	fileName: 'Example Sheet'	Define the file name for this sheet file.
Sheet object	sheets	sheets: [{},{}]	Set defined sheet tabs information for this file.
Floating object	floatings	floatings: [{},{}]	Set defined floatings information for this file.
Cell object	cells	cells: [{},{}]	Set defined cell information for each tab.

You can also call setCondition API and use the following code to update the condition in the existing sheet.


 SHEET_API.setCondition(SHEET_API_HD, [[1, 25, 3, 27, 5]], 'boolstyle', {
     type:"include",
     base:"test",
     style:{"cbgc":"rgb(248,105,107)","ccolor":"rgb(150,0,0)"}
});

Include condition

To add string include condition, the following json object need to be added into floatings.

{
     sheet:1,             // the sheet id of added condition
     name:"condition1",   // name should be unique
     ftype:"cdt",         // define condition type
     json: "{\"name\":\"boolstyle\",\"rng\":[{\"span\":[1,2,2,4,4],\"type\":1}],\"opt\":{\"type\":\"include\",\"base\":\"test\",\"style\":{\"cbgc\":\"rgb(248,105,107)\",\"ccolor\":\"rgb(150,0,0)\"}},\"id\":\"12345670\"}"
  }

For each json object inside condition floating, it is a string with the following format.


  name       // boolstyle
  rng
      span      // [sheetId, x1, y1, x2, y2] which define sheetId and a range of cells need to be added condition
      type      // 1
  opt
      type      // include
      base      // the value to be compared
      style     // referred to the decorated color.
            cbgc     // cell background color if condition meet
            ccolor   // cell font color if condition meet
  id         // unique in this sheet file

Repeat condition

To add number equal condition, the following json object need to be added into floatings.

{
     sheet:1,             // the sheet id of added condition
     name:"condition2",   // name should be unique
     ftype:"cdt",         // define condition type
     json: "{\"name\":\"boolstyle\",\"rng\":[{\"span\":[1,2,2,4,4],\"type\":1}],\"opt\":{\"type\":\"repeat\",\"base\":0,\"style\":{\"cbgc\":\"rgb(248,105,107)\",\"ccolor\":\"rgb(150,0,0)\"}},\"id\":\"1234560\"}"
  }

For each json object inside condition floating, it is a string with the following format.


  name       // boolstyle
  rng
      span      // [sheetId, x1, y1, x2, y2] which define sheetId and a range of cells need to be added condition
      type      // 1
  opt
      type      // repeat
      base      // 0
      style     // referred to the decorated color.
            cbgc     // cell background color if condition meet (repeat value)
            ccolor   // cell font color if condition meet (repeat value)
